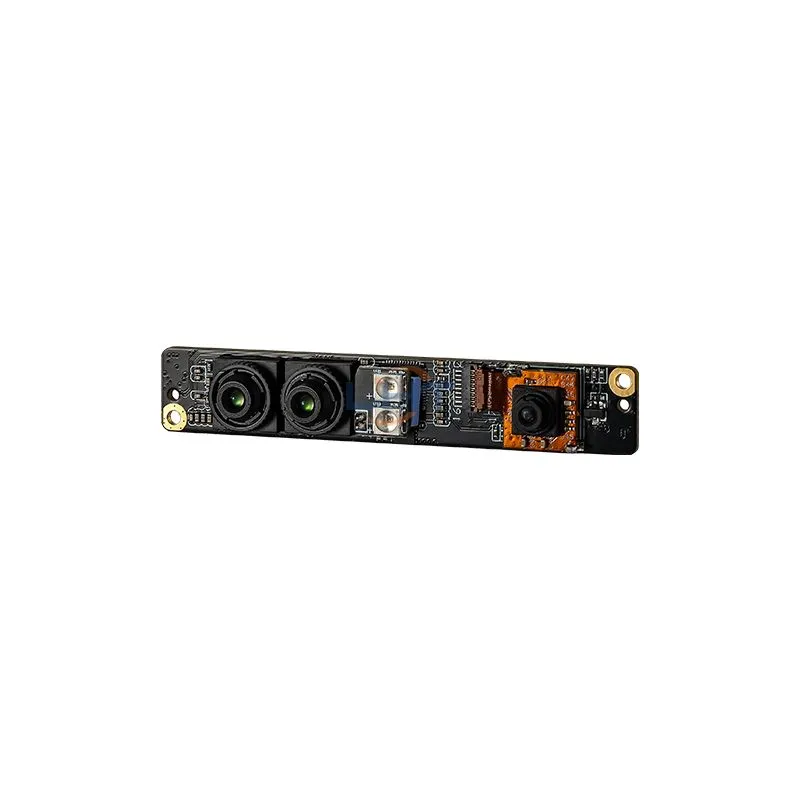

How does a MIPI Camera Module work?

Understanding MIPI Camera Modules with CSI Interface

What is MIPI and CSI?

MIPI stands for Mobile Industry Processor Interface, which is a standard interface that provides a way for different components in a mobile device to communicate. CSI, or Camera Serial Interface, is a specific type of MIPI that is designed for camera data transmission, allowing for high-speed data delivery from the camera module to the processing unit.

Key Components of a MIPI Camera Module

• Image Sensor: Captures light and converts it into electrical signals.
• Lens: Focuses light onto the image sensor.
• MIPI CSI Interface: Facilitates high-speed data transfer.
• Processing Unit: Processes the image data captured by the sensor.

How to Set Up a MIPI Camera Module

Step 1: Gather Required Tools

To set up your MIPI camera module, you will need the following tools:

• MIPI camera module with CSI interface
• Development board (e.g., Raspberry Pi or any compatible board)
• Mini screwdriver
• Jumper wires
• Power supply

Step 2: Connect the Camera Module to the Development Board

Carefully connect the MIPI camera module to the development board using the following steps:

• Locate the CSI connector on the board.
• Align the camera module's connector with the CSI port.
• Insert the connector gently until it clicks into place.
• Secure the connection with a mini screwdriver, if necessary.

Step 3: Configure Software Settings

To ensure proper functioning of the MIPI camera module, configure the software settings:

• Install necessary drivers and libraries for the camera module on your development board.
• Initialize the camera in your code by sending the appropriate commands to the CSI interface.
• Test the connection using a simple script to capture an image.

Common Mistakes to Avoid

Incorrect Connection of the Camera Module

One of the most common mistakes is improperly connecting the camera module. Ensure that the connector is aligned correctly and inserted firmly to avoid communication issues.

Neglecting Driver Installation

Failing to install the necessary drivers may lead to the camera not functioning properly. Always check and install the updated drivers required for your specific MIPI camera module.

Conclusion

In summary, understanding how MIPI camera modules with CSI interface work is crucial for successful implementation in various applications. By following the detailed steps outlined in this guide and avoiding common pitfalls, you can successfully set up a camera module to enhance your project's capabilities. At Linhuitong Information Technology, we provide high-quality MIPI camera modules tailored to meet your needs.
